Features
1. The oroduct has the advantages ofsmallvolume, hich outout power. ow noise, high reliabiity and convenient instalation it can be used as the power part of forklift hydraulic unit under S2 and S3 quota, and it is also used with Dc power supply.
2. Reasonable slot pole matching makes torque output more stable.
3. Class B insulation material can meet the requirements of sudden short-term overload.
4. The motor adopts pure copper rotor and high performance magnetic steel, which can significantly improve the load efficiency of the motor.
5, Simple motor structure,flexible selection of motor installation mode, and customized interface mode and output shaft size according to customer requirements.
PARAMETER
| Model | YM8026 | |||||
|---|---|---|---|---|---|---|
Dimensions(mm) | Φ80x130 | Rated Voltage(V) | 24 | Rated Current(A) | 35 | |
Rated Wattage(W) | 580 | Rated Torque(N·m) | 2 | Rated Speed(rpm) | 2800 | |
IP Classification | IP32 | Insulation Grade | F | Working Type | 12% S3(on 5s off 35) | |
| Model | YM8028 | |||||
|---|---|---|---|---|---|---|
Dimensions(mm) | Φ80x130 | Rated Voltage(V) | 24 | Rated Current(A) | 45 | |
Rated Wattage(W) | 800 | Rated Torque(N·m) | 2.4 | Rated Speed(rpm) | 3200 | |
IP Classification | IP32 | Insulation Grade | F | Working Type | 12% S3(on 5s off 35) | |
| Model | YM8045 | |||||
|---|---|---|---|---|---|---|
Dimensions(mm) | Φ80x130 | Rated Voltage(V) | 48 | Rated Current(A) | 16 | |
Rated Wattage(W) | 500 | Rated Torque(N·m) | 2 | Rated Speed(rpm) | 2400 | |
IP Classification | IP32 | Insulation Grade | F | Working Type | 12% S3(on 5s off 35) | |
| Model | YM8048 | |||||
|---|---|---|---|---|---|---|
Dimensions(mm) | Φ80x130 | Rated Voltage(V) | 48 | Rated Current(A) | 24 | |
Rated Wattage(W) | 800 | Rated Torque(N·m) | 2.4 | Rated Speed(rpm) | 3200 | |
IP Classification | IP32 | Insulation Grade | F | Working Type | 12% S3(on 5s off 35) | |

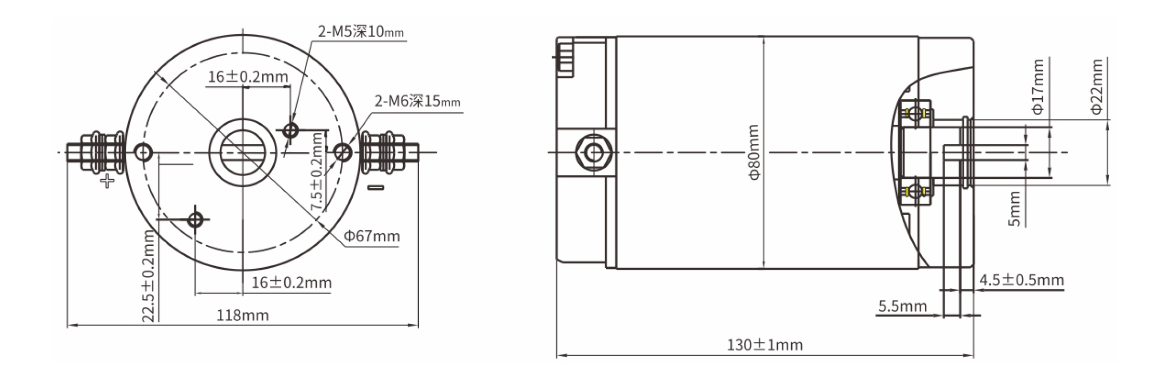

外型图示
（Exterior Drawing）
